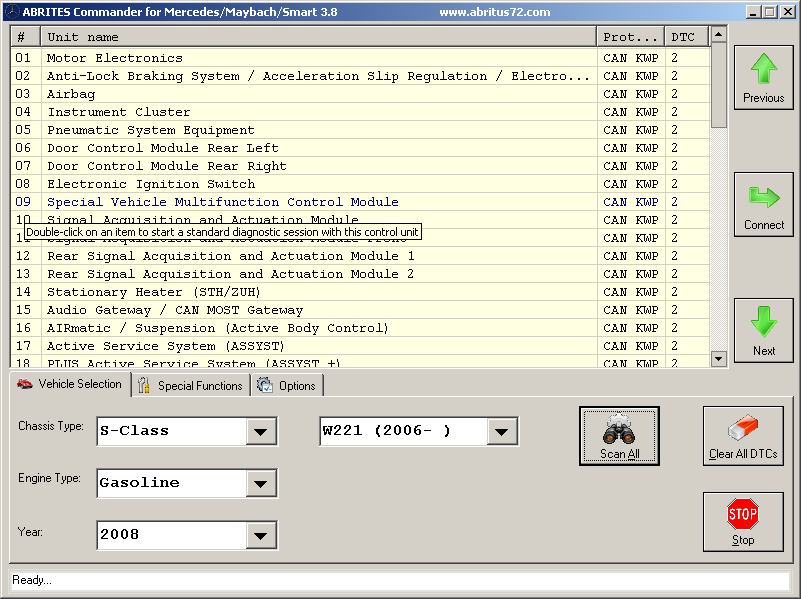

By using the SCAN ALL command you can explore all the devices that are available for diagnostics for the specified car.
From the options tab you can choose which protocol to be used for scanning and if you are not sure , you can check all
of the available from the list, but DO have in mind that the K-Line Slow Init should be used only for cars before 1998.

The AVDI box (ZN051) is an assisting tool developed by AVDI in order to work with the AVDI interface and AVDI diagnostic software in order to aid the work of the AVDI Diagnostics user when working on various brands of vehicles. The tool is not a standalone solution and will not work without an AVDI and AVDI diagnostic software. It has been designed to work with many brands of vehicles. The ZN051 is equipped with a printed circuit board, an incorporated fuse relay and cables to assure that there is complete connectivity with any part of the vehicles. The AVDI Distribution Box is very helpful for bench connections because it has a 12V input and ground which allow you to supply power to the modules you would like to work with on a bench. In the kit you will receive a full additional cable set - needle connectors, resistors and even a DB15 multi point connector cable helping you to read even the latest ECUs in BOOT MODE. AVDI Distribution Box is designed to be placed between the AVDI and the OBD in the vehicle according to the helpful signs on the underside.

DS BoxHD15 cable Purple direct connection cable Set of pins and clips Cable set 1 with fuse 1 with clamps 1 LIN cab

The device is used with the following AVDI software solutions in the following way:

- AVDI diagnostics for Mercedes - ZN051 allows connection to the internal CANBUS and K-line of the vehicles in order to virgin, personalize and activate control modules, it has an incorporated fuse relay in order to assist the extraction of the key password for Mercedes vehicles.

- AVDI diagnostics for VAG - The ZN051 allows the connection to the internal CANBUS of the vehicle to be able to read Configuration DATA, Flash files, perform DPF OFF and many others thanks to the incorporated PCB. The tool is irreplaceable when performing emulator and module adaptation and allows complete control over the vehicles. BOOT MODE reading of EDC17/ MED17

- AVDI diagnostics for BMW - ZN051 allows boot mode reading of DME/DDEs, internal canbus connection.

- AVDI diagnostics for PSA - With the help of ZN051 you can read many ECUs in BOOT MODE.

- AVDI diagnostics for Renault - With the help of ZN051 you can read many ECUs in BOOT MODE.

- AVDI Diagnostics for Porsche - Reading EDC17/MED17 ECUs in BOOT MODE.

ABRITES Commander for BMW allows you to estabilish diagnostic session with each electronic control unit in the vehicles and to perform following actions:

Read and clear stored DTCs (diagnostic trouble codes)
Read and clear history DTCs
Read and clear shadow DTCs
Added DTCs in 17 languages: English, German, French, Thai, Swedish, Italian, Spanish, Indonesian, Korean, Greek, Turkish, Chinese, Chinese traditional, Russian, Dutch, Portuguese, Japanese
DTC conditions information (Odometer value, Timestamp, full engine status report for EDC17)

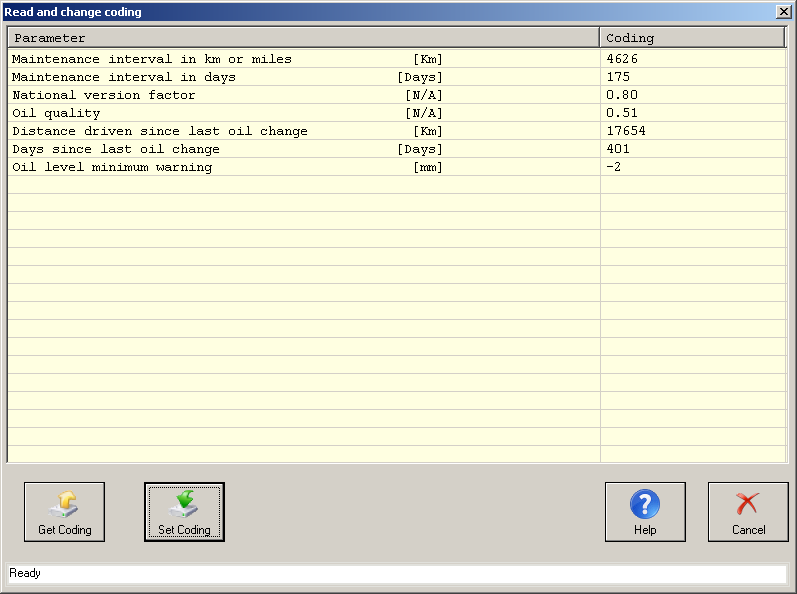

Coding / Configuration of the unit
Disable and Enable DTCs setting while diagnostic session
Program part identification number *
Program User Information Memory of the electronic control unit (history from part programming)
Check about part number, production date, producer and part specific information

In order to assist our customers we have developed connector cables according to the on board diagnostic connectors of the various vehicle brands. Below you can find the different additional cables for brands such as BMW, Mercedes, bikes as well as the J1850 adapter.

Additional cables and adapters

Name	Description	Image
CB002	AVDI cable for 20 pins round diagnostic connector for BMW
CB003	AVDI cable for 38 pins round diagnostic connector for MERCEDES
CB004	AVDI cable for 14 pins round diagnostic connector for MERCEDES Sprinter
CB005	AVDI cable for ESL(ELV) for Mercedes
CB006	AVDI cable for instrument cluster Mercedes W203, W209, W211, W219
CB007	AVDI cable for Bombardier diagnostic connector
CB008	AVDI cable for BMW bike diagnostic connector
CB009	AVDI cable for connection with trucks Deutcsh 6 pin (J1708)
CB100	AVDI OBDII cable (SAE J1962)
CB101	AVDI extension cable for TAGPROG  This cable is a part of TAGPROG and ABPROG programmers (ZN001, ZN030)
CB102	EXT cable for 25 pin F/M
CB103	OBDII Y cable M/2xF
CB104	USB Y 2 x USB-A
CB201	AVDI cable for connection with Suzuki Marine Engines type 1
CB202	AVDI cable for connection with Suzuki Marine Engines type 2 (round)
CB203	AVDI cable for connection with Yamaha Marine Engines
CB204	AVDI cable for connection with Evinrude Marine Engines
CB205	Evinrude Flash Update cable
CB301	AVDI cable for connection with Aprilia Bikes
CB302	AVDI cable for connection with KTM Bikes
CB303	AVDI cable for connection with Benelli Bikes
CB304	AVDI cable for connection with Suzuki Bikes (6 pins)
ZN001	TAGPROG Programmer  Programmer for transponders and keys. The following type transponders are covered:  T5, Temic 11, Temic 12, TK5551, TK5561, Temic 8C, Megamos 13, Megamos 48,  Megamos 8E, Tiris 4C, Tiris 4D, Tiris 4E, Texas DST+, Philips PIT, Hitag-2, Hitag Pro,  Hitag Extended, JMA TPX1, JMA TPX2. TAGPROG programmer can work with AVDI  interface only.
ZN030	ABPROG programmer  The following ICs are supported M35080xx, D080D0WQ, D160D0WQ, SPI 95xxx, I2C  24XXX, Microwire 93XXX, mcu in BCM2 of Audi A4/A5/Q5/A6/A7/A8/ VW Touareg,  mcu in BCM of Renault Megane III, Scenic III, Fluence. ABPROG programmer (ZN030)  including the ZN031 adapter. ABPROG programmer works with AVDI interface only.
ZN032	ABPROG NEC adapter with socket  The adapter is intended for ABPROG programmer ZN030 to be used with NEC MCUs  from Mercedes IR-keys.
ZN033	ABPROG NEC adapter  This adapter is for the customers who already have ABPROG - ZN030 programmer.
ZN036	IR AVDI cable  Cable for reading data from EIS through Infra Red
ZN037	Renault CAN adapter Adapter for diagnostics of all multimedia modules present in the car (Radio, Navigation,  Bluetooth, Telephone, e.t.c).
ZN038	Fiat/Chrysler CAN adapter Diagnostics adapter for ABS (Anti Lock Brakes), HALF (Haptical Lane Feedback),  ESL ( Electronic Steering Lock), ORC (Occupant Restraint), EPS (Electric Power Steering), PAM (Parking Aid Module) present in Fiat 500x and  Jeep Renegade
ZN039	Abrites Toyota transponder emulator Transponder emulator used in conjunction with special function TN006 in order to emulate a master key for Toyota/Lexus vehicles thus allowing the programming of other keys and/or emergency starting the car without taking out the Smart System
ZN051	Abrites adapter and cable set for Mercedes-Benz Set of cables used together with the AVDI in order to facilitate and speed up the extraction of key passwords, the virginazation of modules and update of emulators
J1850	SAE J1850 adapter for AVDI  Adapter will allow diagnostic operation with SAE J1850 based diagnostic protocols  used in the past from Chrysler, Dodge, Jeep, Plymouth, Ford.
